Bioconductor RNA-Seq workflow

-Michael Love, dept. biostat., HSPH/DFCI

1. preparing gene models
2. read counting
3. EDA (exploratory data analysis)
4. differential expression analysis
5. annotating results

slides and code:

• mikelove.github.io/biocrnaseq
• github.com/mikelove/biocrnaseq

What's not covered here

• read alignment
• de novo feature identification
• differential exon usage / differential isoform expression

Preparing gene models

library( "GenomicFeatures" )
# takes ~10 min
txdb <- makeTranscriptDbFromBiomart( biomart="ensembl",
                                    dataset="hsapiens_gene_ensembl" )

smart to use saveDb() to only do this once

• GenomicFeatures

Preparing gene models

• makeTranscriptDbFromGFF() accepts GTF files
• library(TxDb.Hsapiens.UCSC.hg19.knownGene) ready to go
• soon AnnotationHub will offer ready to go

Extract exons for each gene

# takes ~30 seconds
exonsByGene <- exonsBy( txdb, by="gene" )

exonsByGene[[ 1 ]][ 1:4 ]

## GRanges with 4 ranges and 2 metadata columns:
##       seqnames               ranges strand |   exon_id       exon_name
##          <Rle>            <IRanges>  <Rle> | <integer>     <character>
##   [1]        X [99883667, 99884983]      - |    664095 ENSE00001459322
##   [2]        X [99885756, 99885863]      - |    664096 ENSE00000868868
##   [3]        X [99887482, 99887565]      - |    664097 ENSE00000401072
##   [4]        X [99887538, 99887565]      - |    664098 ENSE00001849132
##   ---
##   seqlengths:
##                    1                 2 ...            LRG_99
##            249250621         243199373 ...             13294

Super useful

To convert from chrX to X and back:

seqlevelsStyle(gr) <- "NCBI"
seqlevelsStyle(gr) <- "UCSC"

Read counting

yieldSize for controlling memory:

samples <- read.csv( "sample_data.csv" )
fls <- samples$filename
library( "Rsamtools" )
bamLst <- BamFileList( fls, yieldSize=2000000 )

• Rsamtools

Read counting

library( "GenomicAlignments" )
register( MulticoreParam( workers=4 ) )
# takes e.g. ~30 minutes per sample for 40 million PE reads
se <- summarizeOverlaps( features=exonsByGene,
                        reads=bamLst,
                        mode="Union",
                        singleEnd=FALSE,
                        ignore.strand=TRUE,
                        fragments=TRUE )

• GenomicAlignments
• htseq-count: python library
• Rsubread: featureCounts()
• easyRNASeq

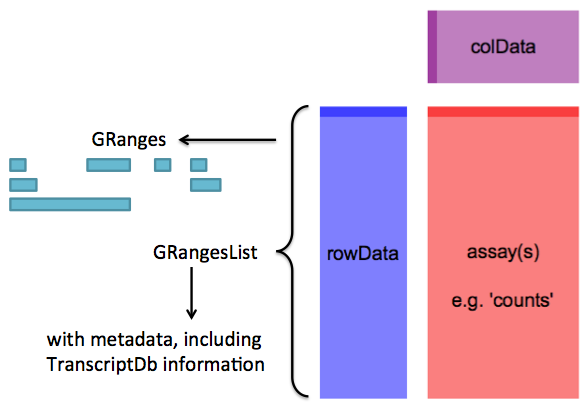

SummarizedExperiment

Metadata stored without user effort

metadata( rowData( se ) )[[ 1 ]][ 1:6 ]

## $`Db type`
## [1] "TranscriptDb"
##
## $`Supporting package`
## [1] "GenomicFeatures"
##
## $`Data source`
## [1] "BioMart"
##
## $Organism
## [1] "Homo sapiens"
##
## $`Resource URL`
## [1] "www.biomart.org:80"
##
## $`BioMart database`
## [1] "ensembl"

Add sample data

DataFrame is a powerful data frame defined in IRanges:

colData( se ) <- DataFrame( samples )

Exploratory data analysis (EDA)

dds <- DESeqDataSet( se, ~ group + condition )
rld <- rlog( dds )

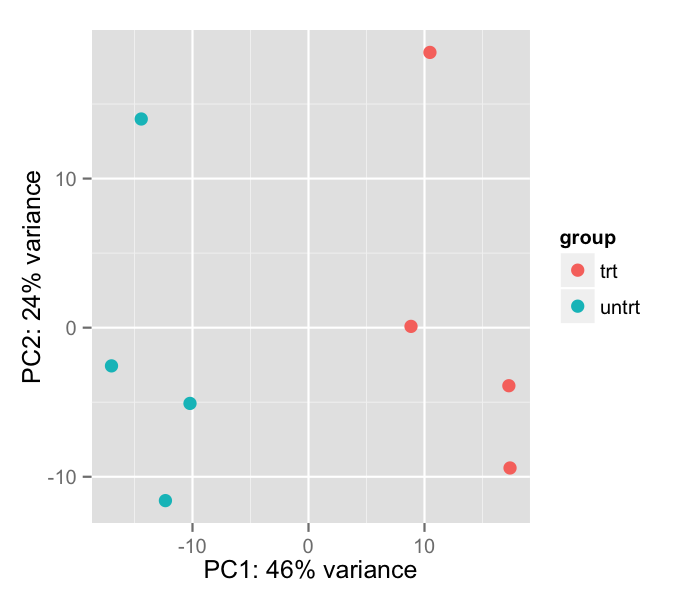

plotPCA( rld, intgroup="condition" )

Differential expression analysis

• DESeq2
• DEXSeq differential exon usage
• edgeR
• limma + voom transformation
• DSS
• BitSeq transcript expression inference
• cummeRbund import and visualize Cufflinks results
• monocle single-cell
• and more

The generalized linear model

\[ K_{ij} \sim \text{NB}( \mu_{ij}, \alpha_i ) \]

• Read count \(K_{ij}\) for gene i sample j.
• 2 parameter count distribution: mean \(\mu\), dispersion \(\alpha\)

\[ \mu_{ij} = s_{ij} q_{ij} \]

• Normalized by size factor \(s_{ij}\), with \(q_{ij}\) remaining
• Often size factor \(s_j\)

The generalized linear model

\[ \log q_{ij} = \sum_r x_{jr} \beta_{ir} \]

\[ \begin{array}{c} \log q_1 \\ \log q_2 \\ \log q_3 \\ \log q_4 \end{array} = \left( \begin{array}{cc} 1 & 0 \\ 1 & 0 \\ 1 & 1 \\ 1 & 1 \end{array} \right) \left( \begin{array}{c} \beta_0 \\ \beta_1 \end{array} \right) \]

• results are logarithm base 2 fold changes

Multigroup comparisons in DESeq2

\[ \begin{array}{c} \log q_1 \\ \log q_2 \\ \log q_3 \\ \log q_4 \\ \log q_5 \\ \log q_6 \end{array} = \left( \begin{array}{cccc} 1 & 1 & 0 & 0 \\ 1 & 1 & 0 & 0 \\ 1 & 0 & 1 & 0 \\ 1 & 0 & 1 & 0 \\ 1 & 0 & 0 & 1 \\ 1 & 0 & 0 & 1 \\ \end{array} \right) \left( \begin{array}{c} \beta_0 \\ \beta_1 \\ \beta_2 \\ \beta_3 \end{array} \right) \]

• code and slides on GTEx tissues: github.com/mikelove/multigroup

Differential expression analysis

# takes e.g. ~25 seconds for 8 samples, 35,000 genes
dds <- DESeq( dds )
res <- results( dds )
res <- results( dds, contrast=c("condition","trt","untrt") )

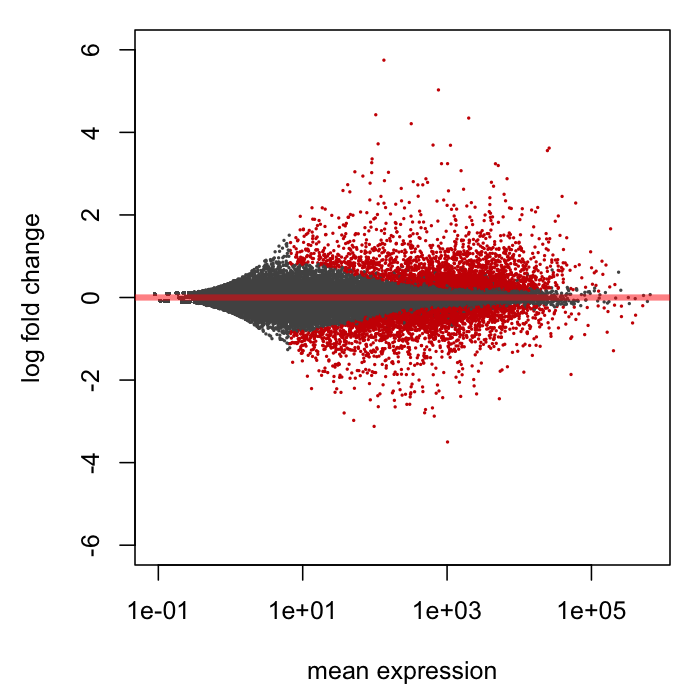

plotMA( res )

Plot counts for a single gene

gene <- rownames( res )[ order( res$pvalue ) ][ 1 ]
plotCounts( dds, gene, "condition" )

in DESeq2 >= v1.5

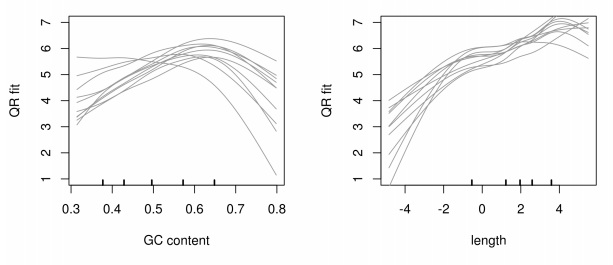

Normalization for sample-specific GC and transcript length

• cqn conditional quantile normalization
• EDASeq

-cqn package vignette

Controlling for unknown batch

• sva: svaseq() surrogate variable analysis
• RUVSeq: remove unwanted variation

return a matrix with columns which are surrogate variables

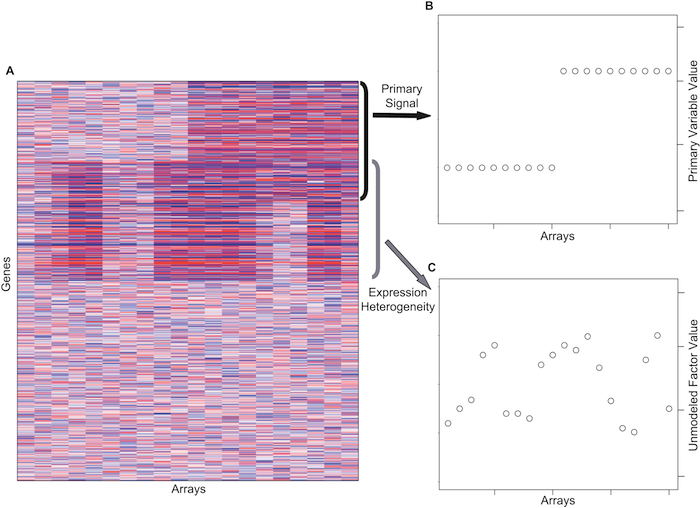

Controlling for unknown batch

Leek and Storey (2007)

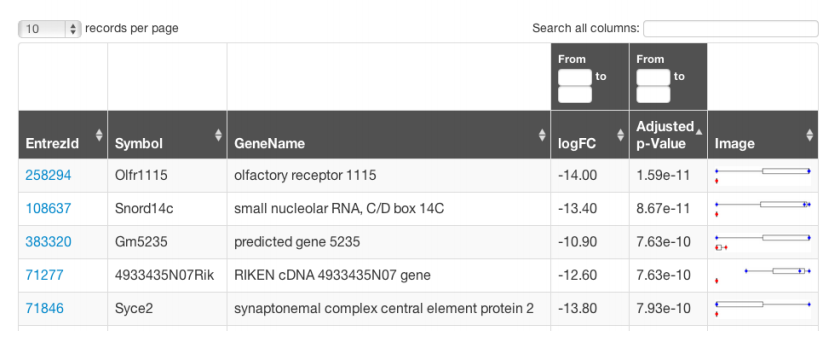

ReportingTools

rprt <- HTMLReport(shortName = "analysis",
                   title = "RNA-Seq analysis",
                   reportDirectory = "./reports")
publish(res, rprt,
        DataSet=dds,
        annotation.db="org.Hs.eg.db")
finish(rprt)

• ReportingTools

ReportingTools

Manual annotation

• biomaRt
• AnnotationDbi: select() works with the annotation packages org.Hs.eg.db:

tab <- select(org.Hs.eg.db, genes, "SYMBOL", "ENSEMBL")

Support

• mailing list:
  1. package name in title
  2. describe experiment, what's the biological question
  3. provide code
  4. sessionInfo()
• browseVignettes("pkg")
• ?function

Acknowledgments

• Bioconductor core team
• DESeq/DEXSeq team
  • Simon Anders
  • Alejandro Reyes
  • Wolfgang Huber
• Rafael Irizarry
